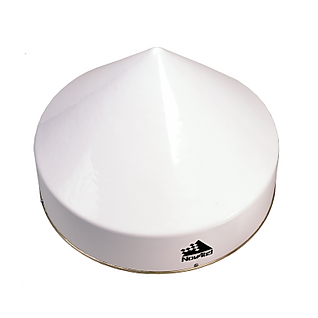

ANT-C2GA-TW-N
Dual-Frequency GPS Antenna

The ANT-C2GA-TW-N from NovAtel is a fixed reference antenna that tracks GPS L1 and L2 signals. Its robust design is well suited for reference stations and other applications that require a high performance antenna.

Manufacturer: NovAtel GPS


Datasheet:
NovAtel Antennas

Overview

The NovAtel ANT-C2GA-TW-N antenna is a fixed reference antenna that tracks GPS L1 and L2 signals. Its robust design is well suited for reference stations and other applications that require a high performance antenna.


The ANT-C2GA-TW-N is equipped with a choke ring that allows it to reduce the negative effect of multipath, which occurs when signals are being reflected from surfaces such as buildings, trees and the ground.


Its pole mount allows it to be installed securely and permanently. Its rugged aluminum case protects it from harsh environments such as rain, wind and shock.


Features

  • Track GPS L1/L2 signals

  • Fixed reference

  • High accuracy

  • Advanced choke ring technology

  • Enhanced multipath rejection

  • Robust design

  • Aluminum case


Technical Specifications

Channels:GPS L1/L2

Dimensions:308 mm (D) x 223 mm (H)

Weight:4.1 kg

LNA Gain:L1 31 dB, L2 33 dB typ

Power:2.5 to 24 VDC, 35 mA typ

Connector:TNC

Compliance:CE, FCC


Ordering

The ANT-C2GA-TW-N antenna from NovAtel can be ordered through GNSSystems. If you would like more information about this antenna, please use the Request Pricing form to get in touch with us.
